308-522: Modelling and Simulation

308-522: Modelling and Simulation

Assignments


1. Causal Block Diagram Time Slicing

Due date: 26 September 2001 (before midnight).
Clarification: Should Integrator blocks be included in the dependency graph ?
During the cycle detection and sorting, the integrator blocks must be ignored. The integrator blocks are not incuded in the dependency graph. In the block diagram, integrator blocks are connected in the same way as all other blocks. An integrator block does however compute a future value of a variable rather than a current one. Only algebraic blocks and their connections can give rise to algebraic (instantaneous, at a single point in simulated time) loops and need to be sorted to guarantee correct simulation results.
In pseudocode:
   check algebraic loops (do not include integrator blocks)
   sort algebraic blocks (do not include integrator blocks)
   initialize outputs of algebraic blocks to 0
   initialize outputs of integrator blocks to IC
   t := t_initial
   while (termination condition not satisfied)
   {
    update algebraic blocks
    output
    update integrator blocks (values at t + delta_t)
    t := t + delta_t
   }

Clarification: What is a Communication Interval ?
A numerical simulator iteratively updates the state variables and advances the simulation time. In a Time Slicing simulator for Causal Block Diagrams, the simulator has a main loop in which the state of each block is updated based on the state of its influencers. Algebraic blocks are processed first (in sorted order), then all the integrator blocks. After all blocks have been processed, the time is advanced by the time-increment (given by the experimentation environment user). In the case of Time Slicing, the time advance comes from the Euler discretization of the integrating blocks. The loop will stop if some termination condition is reached. For numerical accuracy reasons, it may be necessary to set the time-advance (delta_t) to a very small value. The output (in file or on plot) the user wants may not require this resolution. Thus, the user gives a Communication Interval (CI). After every CI time-interval, output will be generated and not necessarily at every time slice ! Note that you could (but optional for the assignment) speed up your simulation considerably if you did a dependency analysis to figure out which blocks are not needed to compute new values of state variables (i.e., input to integrator blocks). These blocks are part of the output function rather than of the transition function (see class on system specification) and need only be computed at communication intervals.

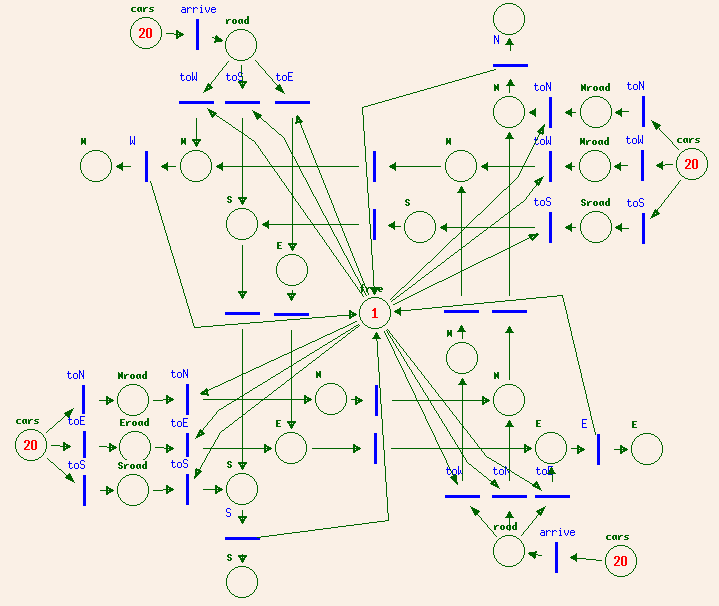

2. Petri Net model of intersection

HV's solution (gif) (pns).

3. CDplayer Statechart model

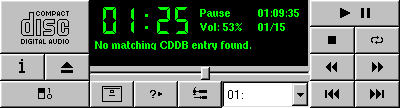

Model the behaviour of the CDplayer GUI shown below (play/pause, time display and track advance only).
Bear in mind that this model should allow simulation and/or synthesis of executable code.



Due date: 5 November 2001 (before midnight).

4. GPSS Chapter 9 assignments

Due date: 12 November 2001 (before midnight).

5. GPSS Chapter 10 assignments

Due date: 19 November 2001 (before midnight).
If you solved assignment N of Chapter 9, you must solve assignment (8 - N) of Chapter 10.

6. DEVS model of intersection

Due date: 2 December 2001 (before midnight).

7. Forrester System Dynamics model of Brooks' Law

Due date: 5 December 2001 (before midnight).


Hans Vangheluwe
