Studying the History of Character Evolution

With a phylogenetic tree and a distribution of character states in the observed (terminal) taxa, Mesquite can attempt to reconstruct the character states at ancestral nodes. Two separate issues to consider are the method by which the reconstruction is done, and how its results are displayed to the user. Mesquite currently can use either parsimony or likelihood to reconstruct ancestral states, and has several display methods, including "Trace Character History" which paints the branches of the tree to show the reconstruction.

We recommend highly that you examine the example files provided in the folder "Ancestral State Examples". The minimal configuration to use with these examples is "Ancestral States" (indicate this configuration under File>Activate/Deactivate Packages>Choose Configuration), but you can also leave Mesquite in its default All Installed Modules mode.

Trace Character History

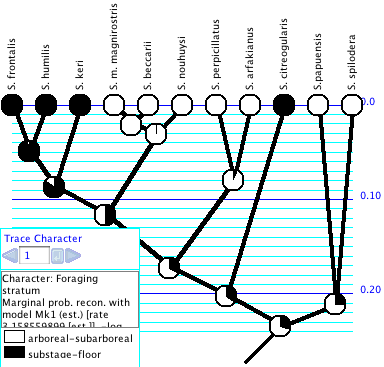

The Trace Character History facility graphically represents a history of character evolution on the tree. It is available under the Analysis menu of a tree window (e.g., the basic Tree Window, Dependent Tree Window, Mirror Tree Window, Multitree Window). If you select this you will probably be asked for a source of characters (e.g., stored characters) and a reconstruction method (e.g., parsimony). The tree will be painted to show ancestral states, and a trace legend will appear. The trace legend contains an important text area that gives details of the current ancestral state tracing. You can also see details of the reconstruction by switching the window to Text mode using the tabs at its top.

The Trace menu gives menu items to control the character history and its display. Some important ones are:

Character history source: The character history displayed can be reconstructed using observed states in terminal taxa ("Reconstruct Ancestral States") or can be a simulated history ("Simulate Ancestral States"). The reconstructed states need not be based on actual data, but could be based on simulated data. "Simulate Ancestral States" shows the "actual" history of character evolution branch by branch as it occured in the simulation, not as it was reconstructed, and thus may show ancestral states that would be unreconstructable, obliterated by subsequent changes.

Next, Previous, Choose Character History: Usually, this will allow you to choose which character to view. You can also scroll through characters using the blue arrows in the trace legend.

Trace Display Mode: With Trace>Trace Display Mode>Shade States and Trace>Trace Display Mode>Label States you choose whether to see the branches painted, or have the states indicated in labels. If painted, you can also ask that states be indicated by labels by choosing Trace>Label States.

You can also see details of the reconstruction at a node by holding the cursor over the branch. A description of the reconstructed states will appear at the bottom part of the Trace Character Legend. Another method is to use the Text view of the window (touch on the Text tab at the top of the tree window) and scroll down — a text version of the trace should appear.

Trace All Characters

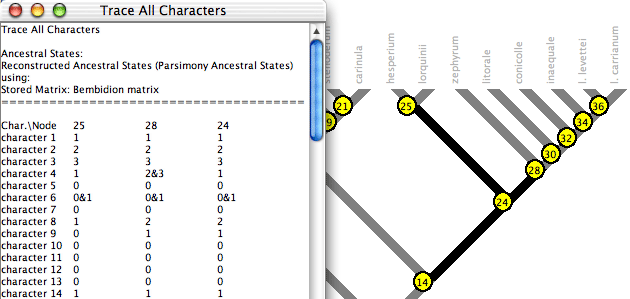

Trace All Characters summarizes ancestral state reconstructions of many characters simultaneously. To request it, choose Choose (Tree Window)Analysis>Trace All Characters. A text window like that shown below will appear, listing the ancestral states reconstructed at each node for each character. Node numbers show up in red on the tree. (Alternatively, spots showing node numbers in the figure below can be turned on in the Tree Window's Drawing menu by selecting Show Node Numbers.)

By default only the selected nodes are listed. (Nodes can be selected using tools in the Tree Window.) You can request to show all nodes by turning off Show Selected Nodes Only in the Trace_All menu. By default all characters are listed; this can be changed using the Show Selected Characters Only menu item.

The ancestral state reconstruction can be controlled in the Trace_All menu of the tree window.

The table is either listed by characters or by nodes; you can switch from one to the other using the Rows are Characters menu item

Columns in the table in the text window may not appear perfectly aligned, but it is presented as a tab-delimited table, so you should be able to copy the text and paste it in to a text file to read in to your favorite spreadsheet program.

Trace Character Over Trees

The Trace Character Over Trees facility summarizes ancestral state reconstructions over a series of trees. This is useful to understand how ancestral state reconstructions vary over a series of trees, for instance if there is uncertainty in the tree. It works for categorical characters only. Also, Trace Character Over Trees does NOT calculate a consensus tree for you. As with all other analyses in the Tree Window, it works with the tree that is given to it by the Tree Window. If you want to make your summary on a consensus tree, then you need to put the consensus tree into the Tree Window first and then request Trace Character Over Trees.

Choose (Tree Window)Analysis>Trace Character Over Trees. This examines a series of trees, and for each examines a character's ancestral states on that tree. For each node in the tree in the tree window, it attempts to summarize what ancestral states are reconstructed for that same clade in the series of trees (as long as the same clade exists in the other trees). For example, imagine the tree in the tree window includes the clade Tetrapoda. Each of the series of trees is examined, and if that tree includes the clade Tetrapoda, then its reconstructed ancestral states are examined. If the tree doesn't include Tetrapoda, then it is ignored for the sake of summarizing the tetrapod ancestral states. The tree in the tree window is then decorated to summarize what ancestral states are reconstructed for each of the clades.

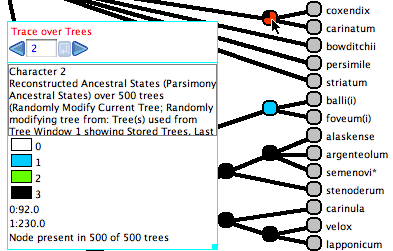

Here is an example of Trace Character Over Trees in action:

The cursor is over a node, and thus the legend shows a summary. The node (i.e., the clade it represents) is present in all 500 of the trees examined. In 92 of those trees, state 0 is reconstructed at the node. In 230 trees, state 1 is reconstruced. These two numbers do not add to 500 because some trees show an ambiguous (equivocal) ancestral state reconstruction at the node, and the option to count only the Uniquely Best States is selected in the Count submenu of the Trace_Over_Trees menu. With this option a tree is counted as having a state at a node only if the state is the only optimal state. What is considered optimal depends on the reconstruction method. With parsimony, states are considered equally optimal if they are equally parsimonious. With likelihood, the Decision Threshold is used to decide whether states are good enough to be considered within the optimal set. The alternative to "Uniquely Best State" is "Equivocal". With the Equivocal option for counting, a tree is counted as having a state at a node if the state is within the optimal set, whether or not there are other states within the optimal set. When the Equivocal option is used, the sum of tree counts for the states at a node can more than the total number of trees with the clade, for a tree can get counted multiply at a node, under each state in an equivocal assignment.

An important option is what trees to examine. If the tree in the tree window is a consensus tree, then the trees examined might be the original set of most parsimonious trees that built the consensus. Trace Character Over Trees could then show how the ancestral state reconstruction varies among the most parsimonious trees. The trees examined might also be derived from a Bayesian analysis, and the ancestral states obtained by likelihood, to do an analysis in Lutzoni's style. The trees might be random resolutions of an unresolved tree, or trees with random noise added to branch lengths, and so on. This would allow you to see how the results would vary if the tree changed. See the submenu Trace_Over_Trees>Tree Source for options.

Parsimony Reconstruction Methods

Parsimony reconstruction methods find the ancestral states that minimize the number of steps of character change given the tree and observed character distribution. They can use different assumptions (models of evolution). For categorical characters, the unordered states assumption is that one step is counted for any change. The ordered states assumption is that the number of steps from state i to state j is |i-j|. Thus, the number of steps from state 2 to state 5 is 3 steps. A stepmatrix explicitly specifies the number of steps from state to state by a matrix. Mesquite does not yet do parsimony calculations for irreversible, Dollo and character state tree assumptions, although these models are listed in menus and you can assign them to particular characters. For continuous characters, the linear cost assumption is that the cost of a change from state x to state y is |x-y|. The squared change assumption is that the cost of a change from state x to state y is (x-y) squared.

Mesquite's parsimony calculations attempt to match MacClade's. Some differences remain in special cases of polymorphic terminal taxa with stepmatrices. Mesquite allows hard polytomies in the tree when stepmatrices are used.

Assigning a parsimony model: The parsimony model used for a character's calculations is the model assigned to it, if the character is one stored in in a matrix in a file. A parsimony model can be assigned in the List of Characters window. Select the row(s) corresponding to the desired character(s), and then touch on the column heading "Parsimony Model". A drop-down menu contains a submenu that allows you to select the models to apply. You can also change the parsimony model assigned to the character being traced in Trace Character History using the Parsimony Model submenu of the Trace menu. (Recall that Mesquite cannot yet do calculations with irreversible and Dollo models.)

If the characters used in parsimony reconstruction are not stored in a matrix but rather come directly from another source of characters such as simulations, a single parsimony model can be chosen to be applied to all of the characters coming from this source. Thus, for instance, when using Trace Character History, the Parsimony Model submenu of the Trace menu can be used to assign the model to be used.

Creating and editing stepmatrices: To create a stepmatrix, select Characters>New Character Model>Stepmatrix. A window will appear in which you can edit the cost of i to j transitions. The number of states allowed is initially 10 (0 through 9), but you can change the number of states under (Edit Stepmatrix)>Step_matrix>Set maximum state. The maximum number of states for a categorical character is 56; the maximum state value is therefore 55. This stepmatrix editor does not do triangle inequality checking (see discussion in manual of MacClade, which does check the triangle inequality).

The parsimony calculations are used also for Treelength and Character Steps.

Likelihood Reconstruction Methods

Likelhood reconstruction methods find the ancestral states that maximize the probability the observed states would evolve under a stochastic model of evolution (Schluter et al., 1997; Pagel, 1999). The likelihood reconstruction finds, for each node, the state assignment that maximizes the probability of arriving at the observed states in the terminal taxa, given the model of evolution, and allowing the states at all other nodes to vary. (In fact, this considers all possible assignments to the other ancestral states.) This is equivalent to the marginal reconstruction of Swofford's PAUP*, or the Fossil Likelihood reconstruction of Pagel's Discrete.

You can use likelihood for the reconstruction by selecting "Likelihood Ancestral States" when first requesting Trace Character History, or from the Method submenu of the Trace menu after Trace Character History is already active. When using Likelihood Ancestral States in Trace Character History, it is recommended that you use a Tree Form for the drawing that uses spots at the nodes (for example, (Tree Window)Drawing>Tree Form>Balls & Sticks). These spots at the nodes will indicate relative likelihoods with pie diagrams as in Schluter et al. 1997.

At present only categorical characters are supported by the likelihood calculations. Models for DNA and protein evolution are not yet available for use by likelihood. Two models of evolution are currently supported, the Mk1 model and the AsymmMk model.

• Mk1 model ("Markov k-state 1 parameter model") is a k-state generalization of the Jukes-Cantor model, and corresponds to Lewis's (2001) Mk model. The single parameter is the rate of change. Any particular change (from state 0 to 1 or state 3 to 2, for example) is equally probable. Mesquite's rate of change parameter is equivalent to the q values of Pagel's Multistate program when the q's are constrained to be equal. Thus for a character with three states 0, 1 and 2, the Mk1 model would have an instantaneous rate matrix of the following form:


  To	0	1	2
  From 0	-	q	q
  1	q	-	q
  2	q	q	-

• AsymmMk model ("Asymmetrical Markov k-state 2 parameter model") has two parameters: one for the rate of increase in state (from 0 to 1, 1 to 2, etc.; the "forward" rate) and one for the rate of decrease in state (from 2 to 1, 1 to 0, etc.; the "backward" rate). For more than two states, this seems a biologically unlikely model, but for two states is provides a simple model that allows a bias in gains versus loses. Mesquite supports two alternative ways to describe the model. The two parameters can be forward rate and backward rate, or overall rate and bias of gains versus losses. Thus, if forward and backward rates are both 0.5, then this can alternatively be described as a rate of 0.5 and a bias of 1.0 (i.e., unbiased). The conversion between the two representations is done by the following formulas: forward rate = overall rate * square root(bias); backward rate = overall rate / square root(bias). This conversion means that forward rate / backward rate = bias. Thus an AsymmMk model would have an instantaneous rate matrix of the following form for a 3-state character:


  To	0	1	2
  From 0	-	f	f
  1	b	-	f
  2	b	b	-


  This may be an unrealistic model for 3 or more states (why should all increases in state number have the same rate and decreases a different rate?), and so we expect it will be used mostly for two-state characters.

Many programs bundle the rate of evolution into the branch lengths of the tree itself. Thus, to change the rate of evolution, the tree needs to be stretched or shrunk; there is no separate rate parameter that belongs to the stochastic model of evolution. This works well as long as the branch lengths are understood in the same way by the model and the tree, i.e., the tree's time units (calibration of time scale) are the same as that of the model. However, in Mesquite different calculations might make different assumptions about the time scale: coalescence calculations might need the tree's branches measured in generations, while a Jukes Cantor model might assume they are in expected nucleotide substitutions. Thus, many stochastic models in Mesquite have an extra parameter compared to other programs: the scaling of the model to the tree. For this reason Mk1 has a rate parameter to scale the rate against the tree.

If parameters of a model are unspecified, Mesquite currently estimates them based on the data. Note: Mesquite currently estimates parameters on each character separately, not on the entire data matrix. In addition Mesquite's likelihood calculations do NOT estimate branch lengths. They use pre-existing branch lengths (if a branch length is unassigned, it is treated as 1.0).

Mesquite cannot do likelihood calculations in trees with soft polytomies, or if some taxa have missing data, polymorphisms, uncertain states, or gaps in the character. The calculations also require that the states of a character are contiguous from zero; i.e., the character cannot have only states 0,1 and 3.

Other programs that reconstruct ancestral states using likelihood are Pagel's Discrete and Swofford's PAUP*.

Making, editing and applying probability models: To use the likelihood calculations, stochastic (probabilistic) models of evolution must be defined. Two models are predefined: a general Mk1 model and a general AsymmMk model. Both of these have their parameters unspecified.

You can also create your own models and specify their parameters by selecting Characters>New Character Model>Markov k-state 1-parameter model (to make an Mk1 model) or Characters>New Character Model>Asymmetrical 2-param. Markov-k model (to make an AsymmMk model). In either case a window will appear in which you can specify the parameters. The Mk1 model allows you to change the rate. Also, you can change the maximum state allowed using a menu item in the Mk1_model menu (e.g., to restrict it to binary characters, choose 1 as the maximum state). The AsymmMk model allows you to change the forward and backward rates, and the maximum state allowed (using a menu item in the AsymmMk_Model menu). You can also choose to express the two parameters in the AsymmMk model as a rate (which controls both forward and backward rates) and a bias (which controls the ratio of forward to backward rates). A bias of greater than 1 means forward changes are more probable; a bias of less than 1 means that backward changes are more probable.

After creating a model, you can edit it by selecting it under Characters>Edit Character Model. You can rename or delete a model by going to the List of Character Models window available under Characters.

Once models are defined they can be applied and used. When setting up a likelihood calculation, if you indicate to use "Stored Probability Model", the calculation will use the selected model for all characters. Alternatively, if the characters used are stored in a matrix (instead of generated temporarily such as by simulations), then each character can be assigned a model in advance of the calculation. This can be done by going to the List of Characters window, selecting the row(s) corresponding to the desired character(s), and then touching on the column heading "Probability Model". A drop-down menu contains a submenu that allows you to select the models to apply. These models will remain assigned to the characters if you save and reopen the file. You can also change the current probability model applied to a character by selecting a module in the Probability Model submenu of the Trace menu. Once models are assigned to the characters, then the these are treated as the "Current" models applied to the characters. To indicate that the likelihood calculations use these assigned models, indicate "Current Probability Model" when asked for the source of models.

Optimization Settings: Models used for likelihood calculations may have adjustable settings for the optimization routines used to estimate parameter values. These settings can be changed under Characters>Model Settings; once changed the settings are universal, applying to all calculations with that category of model. They are stored in the preferences directory and used again the next time you start Mesquite. The Mk1 Model has one setting: The coarseness of the intervals surveyed in optimizing the rate parameter. Wider intervals may result in finding the optimum more quickly when rates are high, but may make less accurate when rates are low. Mesquite by default tries the optimization twice, first with width 1.0 then again with width 10.0, and then chooses the best results. You can request that Mesquite try a single fixed width; suggested values are 1.0 to 20.0. To request Mesquite that use its default strategy, enter a width of 0. The AsymmMk model has one setting, concerning the values of parameters used as starting points in the search for optimal parameter values. This setting is used when both parameters of the model are unspecified and need to be estimated. There are three options: (1) The rate is first estimated using the Mk1 model, and then the optimization routine is given that rate plus a bias of 1.0 as starting values. (2) The forward and backward rates of 1.0 and 1.0 are used as starting values, and then 1.0 and 0.1, and then 0.1 and 1.0. Of these three attempts, the parameter values from the attempt yielding the highest likelihood is chosen. (3) Options 1 and 2 are combined, resulting in four attempts to estimate parameters, first using the Mk1 rate then the three alternative forward and backward rates as starting values. Of the four attempts, the parameter values from the attempt yielding the highest likelihood is chosen. The default option is (1). Because the AsymmMk sometimes uses the Mk1 model, changing the setting of the Mk1 model may affect results from the AsymmMk model.

Reporting of results: Likelihood ancestral state reconstructions can be reported in various ways. A first issue is whether only the best estimates are shown at a node or instead the support for each state is shown at a node, regardless of how strong or weak. This is controlled in Trace Character History by the Display Proportional to Weights menu item. If it is selected, then support for each state is shown; otherwise, only the states judged best are shown. The judgment of what are the best states is made according to a decision threshold T, such that if the log likelihoods of two states differ by T or more, the one with lower likelihood (higher negative log likelihood) is rejected. This is set using the Likelihood Decision Threshold menu item.

What states are judged best can be viewed using Trace Character History in several ways: (1) When the cursor is held over a branch and the list of states appears at the bottom of the Trace Legend, the states judged best according to the threshold are marked with an asterisk; (2) In the Text view of the window, the list of reconstructions shows an asterisk by each state judged best at the mode; and (3) When Display Proportional to Weights is turned off, only the best states are shaded on the branches. The threshold and best states are also used in Trace Character Over Trees.

Another issue is whether the likelihoods of alternative states are reported as is (Raw Likelihoods) or not. The other two options are to report proportional likelihoods (likelihoods of states are scaled so that they add up to 1, and thus for each state is shown its proportion of total likelihood) or negative log likelihoods. The former are convenient for interpretation and visualization; the latter may be more easily used in statistical tests.

Comparison and Interaction with other Programs

NEXUS-based programs: Mesquite currently saves the models of evolution for likelihood in the private MESQUITECHARMODELS block in NEXUS files. A private block is used because there is as yet no standard for designating such models. Thus, PAUP*, MrBayes and other programs doing likelihood calculations will not be able to access these character models.

Comparison with MacClade: Users familiar with MacClade (macclade.org) will notice some of its features missing from Mesquite, and vice versa. MacClade is restricted to parsimony reconstructions, but has the following features that Mesquite currently lacks. MacClade's Trace Character facility has the ability to fix states at a node (the paintbrush tool) and to show individual MPR's (MPRs mode, formerly Equivocal Cycling). MacClade's Trace All Changes mode and Changes & Stasis chart summarize reconstructed changes in all characters. Parsimony models include Dollo, irreversible and character state trees. Mesquite, on the other hand, includes likelihood reconstructions, reconstructions for continuous characters better integrated with Trace Character, branch-length sensitive calculations and other features such as Trace Over Trees.

Pagel's Discrete and Multistate programs: Pagel's Discrete and Multistate programs also do likelihood reconstructions of ancestral states. Discrete's Fossil Likelihoods with the Global option corresponds to Mesquite's Likelihood Ancestral States. To obtain reconstructions in Multistate equivalent to Mesquite's, define the restricted model equivalent to Mk1 or AsymmMk, using a series of "restrict" commands to set the q parameters equal as appropriate. Use the "test" command to estimate the q rates. Then, restrict the rates to those estimated. Next, use the "fossil" command to fix the node of interest to each of the states in turn, after each using the "test" command to ask Multistate to evaluate the likelihood. These likelihoods are the global likelihoods for the states at the node.

Discrete and Multistate have several features not available currently in Mesquite, including the Local option for parameter estimation, more complete reporting of statistics for the reconstructions, and calculations to test correlation among characters using likelihood ratio tests.

Mesquite can import and export data files for Discrete and Multistate (ppy files). To import, select the file with Mesquite and choose Pagel format in the import dialog box. To export, select File>Export....

Acknowledgments

David Swofford assisted by providing code in C, translated by us to Java, for the optimization routines used in the likelihood reconstruction.

References

Lewis, P.O. 2001. A likelihood approach to estimating phylogeny from discrete morphological character data. Systematic Biology 50:913-925.

Lutzoni F, M. Pagel & V. Reeb. 2002. Major fungal lineages are derived from lichen symbiotic ancestors. Nature 411: 937-940.

Maddison, D.R. and W.P. Maddison. 2000. MacClade version 4: Analysis of phylogeny and character evolution. Sinauer Associates, Sunderland Massachusetts.

Pagel, M. 1999. The maximum likelihood approach to reconstructing ancestral character states of discrete characters on phylogenies. Systematic Biology. 48: 612-622.

Pagel, M. 2000. Discrete, version 4.0. A computer program distributed by the author.

Pagel, M. 2002. Multistate, version 0.6. A computer program distributed by the author.

Schluter D, T. Price, A.O. Mooers, D. Ludwig. 1997. Likelihood of ancestor states in adaptive radiation. Evolution. 51: 1699-1711.
