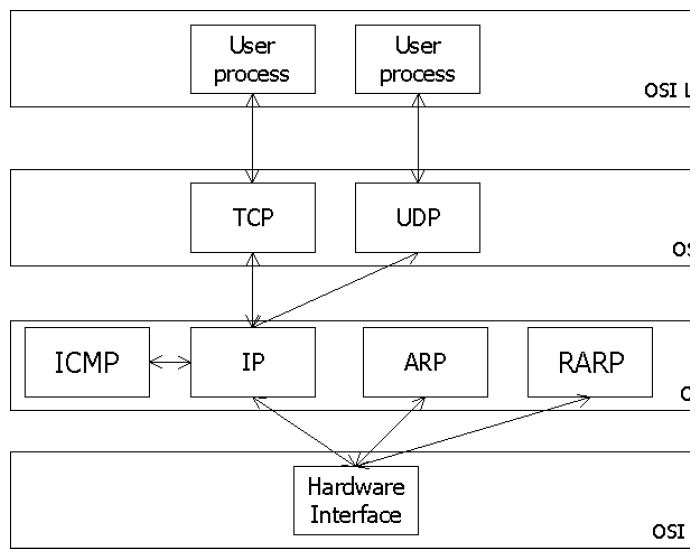

Characteristics of the protocol suite:
User interaction with the TCP/IP protocol suite:
Number of recipients:
Format classes (later):
Usually written as 4 dot-separated decimal numbers (e.g., 132.206.51.10).
At tranport layer: add a port number (a 16-bit integer)
® identify communicating processes in host.
TCP and UDP define well-known addresses (port numbers) for well-known services. In /etc/services:
daytime 13/tcp daytime 13/udp netstat 15/tcp qotd 17/tcp quote msp 18/tcp # message send protocol msp 18/udp # message send protocol chargen 19/tcp ttytst source chargen 19/udp ttytst source ftp-data 20/tcp ftp 21/tcp fsp 21/udp fspd ssh 22/tcp # SSH Remote Login Protocol ssh 22/udp # SSH Remote Login Protocol telnet 23/tcp # 24 - private smtp 25/tcp mail
Communicate with sendmail process on smtp (25) port on localhost:
telnet localhost smtp
Check active internet connections:
hv@lookfar 59% netstat --inet -a Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State tcp 0 0 HSE-Montreal-ppp34:1023 mimi.CS.McGill.CA:ssh ESTABLISHED tcp 0 0 *:X *:* LISTEN tcp 0 0 *:www *:* LISTEN tcp 0 0 *:https *:* LISTEN tcp 0 0 *:587 *:* LISTEN tcp 0 0 *:smtp *:* LISTEN tcp 0 0 *:printer *:* LISTEN tcp 0 0 *:ssh *:* LISTEN tcp 0 0 *:finger *:* LISTEN raw 0 0 *:icmp *:* 7 raw 0 0 *:tcp *:* 7
The socket address structure (in <sys/socket.h>)
struct sockaddr
{
u_short sa_family; /* address family: AF_XXX value */
char sa_data[14]; /* up to 14 bytes of protocol-specific address */
};
Easy to fill in using (in <netinet/in.h>):
struct in_addr
{
u_long s_addr; /* 32-bit address, in network byte order */
};
struct sockaddr_in
{
short sin_family; /* AF_INET */
u_short sin_port; /* 16-bit port number, in network byte order */
struct in_addr sin_addr; /* 32-bit address, in network byte order */
char sin_zero[8]; /* unused */
};
u_short and u_long are defined in <sys/types.h>.
For some API calls, an explicit cast from struct sockaddr_in * to
(struct sockaddr *) in needed.
sin_zero (padding the structure to the length of struct sockaddr)
must be set to all zeros (e.g., with memset()).
Difference in storage order of integers' bytes on different machine
architectures.
For example a 16-bit integer, made up of 2 bytes can be stored in
two different ways:
For networking: network byte order.
Conversion routines:
#include <sys/types.h>
#include <netinet/in.h>
u_long htonl (u_long hostlong);
u_short htons (u_short hostshort);
u_long ntohl (u_long netlong);
u_short ntohs (u_short netshoert);
sin_addr and sin_port fields must be in Network Byte
Order as they
get encapsulated in the packet at the IP and UDP layers, respectively.
sin_family is only used by the kernel to determine what
type of address the structure contains, so it must be in Host Byte Order.
It is not sent over the network.
An Internet address is usually written in the dotted-decimal format (e.g., ,
10.12.110.57).
Conversion between dotted-decimal format (a string) and
a in_addr structure:
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
unsigned long inet_addr(char * ptr);
char * inet_ntoa(struct in_addr inaddr);
inet_addr() converts a character string in dotted-decimal notation to a 32-bit Internet address (in Network Byte Order). It returns -1 on error. Beware ! -1 corresponds to the IP address 255.255.255.255, the broadcast address.
Example: convert the IP address "10.12.110.57" and store it
ina.sin_addr.s_addr = inet_addr("10.12.110.57");
if ( ina.sin_addr.s_addr == -1 ) /* error */
{
... /* error handling */
}
Remarks:
char *a1, *a2;
.
.
a1 = inet_ntoa(ina1.sin_addr); // assume this holds 192.168.4.14
a2 = inet_ntoa(ina2.sin_addr); // assume this holds 10.12.110.57
printf("address 1: %s\n",a1);
printf("address 2: %s\n",a2);
will print
address 1: 10.12.110.57
address 2: 10.12.110.57
Invoke socket() to specify the type of communication protocol desired (TCP, UDP, etc. ).
#include <sys/types.h>
#include <sys/socket.h>
int socket(int family, int type, int protocol);
socket() returns
Typical sequence of system calls to implement TCP clients and servers.
Server Client
socket()
|
V
bind()
|
V
listen()
|
V
accept() socket()
| |
blocks until connection from client V
| <-- connection establishment ------------> connect()
| |
V V
read() <-------- data (request)--------------- write()
| |
process request |
| |
V V
write() -------- data (reply) ----------------> read()
bind() assigns a name to an unnamed socket.
Associates the socket with a port in the local machine.
The port number is used by the kernel to match an incoming packet to a certain process's socket descriptor.
Used by TCP and UDP servers and by UDP clients.
#include <sys/types.h>
#include <sys/socket.h>
int bind(int sockfd, struct sockaddr *my_addr, int addrlen);
sockfd is the socket file descriptor returned by socket().
my_addr is a pointer to a struct sockaddr.
addrlen can be set to sizeof(struct sockaddr).
Returns -1 on error and sets errno to the error's value.
Code fragment be necessay to set up a TCP server (will be completed later):
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#define MYPORT 3490
int main()
{
int sockfd;
struct sockaddr_in my_addr;
if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
exit(1);
}
my_addr.sin_family = AF_INET; /* host byte order */
my_addr.sin_port = htons(MYPORT); /* short, network byte order */
my_addr.sin_addr.s_addr = htonl(INADDR_ANY); /* my own IP address */
memset(&(my_addr.sin_zero), '\0', 8); /* zero the rest of the struct */
if ( bind(sockfd, (struct sockaddr *)&my_addr, sizeof(struct sockaddr)) < 0 )
{
perror("bind");
exit(1);
}
.
.
.
Automating getting the local IP address and/or port:
my_addr.sin_port = 0; /* choose an unused port at random */
my_addr.sin_addr.s_addr = htonl(INADDR_ANY); /* use my IP address */
Ports below 1024 are reserved. Upto 65535 (sin_port is 16 bits long) can be used, provided not in use by another process.
When trying to rerun a server, bind() often fails
"Address already in use."
Probably a socket that was connected has not been closed properly, is still ``alive'' in the kernel and is occupying the port. Two options are possible:
int yes=1;
if (setsockopt(listener,SOL_SOCKET,SO_REUSEADDR,&yes,sizeof(int)) == -1)
{
perror("setsockopt");
exit(1);
}
#include <sys/types.h>
#include <sys/socket.h>
int connect(int sockfd, struct sockaddr *serv_addr, int addrlen);
Initial code necessay for a TCP client:
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#define DEST_IP "150.244.56.39"
#define DEST_PORT 13
main()
{
int sockfd;
struct sockaddr_in dest_addr; /* will hold the destination addr */
if ((sockfd = socket(AF_INET, SOCK_STREAM, 0))<0)
{
perror("socket");
exit(1);
}
dest_addr.sin_family = AF_INET; /* inet address family */
dest_addr.sin_port = htons(DEST_PORT); /* destination port */
dest_addr.sin_addr.s_addr = inet_addr(DEST_IP); /* destination IP address */
memset(&(dest_addr.sin_zero), '\0', 8); /* zero the rest of the struct */
if (connect(sockfd, (struct sockaddr *)&dest_addr, sizeof(struct sockaddr))<0)
{
perror("connect");
exit(1);
}
.
.
.
The code does not call bind().
We don't care about our local port number, only about the remote port.
The kernel will choose a local port, and the site we connect to will automatically get this information from us.
A connectionless client (UDP) can also use connect(). In this case, the system call just stores the serv_addr specified by the process, so that the system knows where to send any future data the process writes to the sockfd descriptor. Also, only datagrams from this address will be received by the socket.
not take place. The advantage of connecting a socket if we use UDP, is that the destination address is not needed for every datagram sent.
int listen(int sockfd, int backlog);
Returns -1 and sets errno on error.
Example:
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#define MYPORT 3490
int main()
{
int sockfd;
struct sockaddr_in my_addr;
if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
exit(1);
}
my_addr.sin_family = AF_INET;
my_addr.sin_port = htons(MYPORT);
my_addr.sin_addr.s_addr = inet_addr(INADDR_ANY);
memset(&(my_addr.sin_zero), '\0', 8); /* zero the rest of the struct */
if ( bind(sockfd, (struct sockaddr *)&my_addr, sizeof(struct sockaddr)) < 0 )
{
perror("bind");
exit(1);
}
if ( listen(sockfd, 5) < 0 )
{
perror("listen");
exit(1);
}
.
.
.
#include <sys/socket.h>
int accept(int sockfd, void *addr, int *addrlen);
Continuation of the example:
#include <string.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#define MYPORT 3490
int main()
{
int sockfd, csd, len;
struct sockaddr_in my_addr, cliaddr;
if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
exit(1);
}
my_addr.sin_family = AF_INET;
my_addr.sin_port = htons(MYPORT);
my_addr.sin_addr.s_addr = inet_addr(INADDR_ANY);
memset(&(my_addr.sin_zero), '\0', 8); /* zero the rest of the struct */
if ( bind(sockfd, (struct sockaddr *)&my_addr, sizeof(struct sockaddr)) < 0 )
{
perror("bind");
exit(1);
}
if ( listen(sockfd, 5) < 0 )
{
perror("listen");
exit(1);
}
len = sizeof(cliaddr);
while(1)
{
if ((csd = accept ( sockfd, (struct sockaddr *)&cliaddr, &len))<0)
{
perror("accept()");
exit(1);
}
printf("connection from %s, port %d\n",
inet_ntoa(cliaddr.sin_addr),
ntohs(cliaddr.sin_port));
.
.
.
Similar to write() and read() but give more control.
Used for sending and receiving over TCP or connected datagram sockets.
#include <sys/types.h>
#include <sys/socket.h>
int send(int sockfd, const void *msg, int len, int flags);
int recv(int sockfd, const void *msg, int len, int flags);
MSG_OOB /* send or receive out-of-band data */
MSG_PEEK /* peek at incoming message (recv or recvfrom) */
MSG_DONTROUTE /* bypass routing (send or sendto) */
Both system calls return the length of the data that was sent or received, or -1 on error.
If recv() returns 0,that means that the server has closed the connection.
The usual Unix close() is also used to close a socket. The prototype is the following:
int close(int fd);
This will prevent any more reads and writes to the socket. Some process attempting to read or write the socket on the remote end will receive an error.
shutdown() allows more control over how the socket closing. It permits to cut off communication in a certain direction, or both ways (like close()). The prototype is:
int shutdown(int sockfd, int how);
sockfd is the socket file descriptor to be closed. how is one of the following:
shutdown() returns 0 on success, and -1 on error (with errno set accordingly)
The following is the code for the daytime client:
#include <stdio.h> /* for printf() */
#include <string.h> /* for memset() */
#include <stdlib.h> /* for exit() */
#include <unistd.h> /* for close() */
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
/* get the time in Spain */
/*#define DEST_IP "150.244.56.39"*/
/*#define DEST_PORT 13 */
/* get the time locally */
#define DEST_PORT 3490
#define MAXLINE 128
#define MAX_QUERY 15
int
main(void)
{
int sockfd; /* socket file descriptor to comm through */
struct sockaddr_in dest_addr; /* the server's address */
char recvline[MAXLINE + 1]; /* to store received data in */
int num_recvd; /* number of bytes received */
int cnt; /* index variable for series of time queries */
for (cnt=0; cnt<MAX_QUERY; cnt++)
{
if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
exit (1);
}
/* set up the destination address sockaddr_in structure */
/* Internet family */
dest_addr.sin_family = AF_INET; /* in HBO */
/* to communicate with the server in Spain, destination IP address */
/* dest_addr.sin_addr.s_addr = inet_addr(DEST_IP); long, in NBO */
/* to communicate with our own server */
/* server runs on the local host, IP address is filled automatically */
dest_addr.sin_addr.s_addr = htonl(INADDR_ANY); /* long, in NBO */
/* at the above IP address, port DEST_PORT */
dest_addr.sin_port = htons(DEST_PORT); /* short, in NBO */
/* zero the rest of the struct */
memset(&(dest_addr.sin_zero), '\0', 8);
/* try to set up a connection */
if (connect(sockfd, (struct sockaddr *) &dest_addr,
sizeof(struct sockaddr)) < 0)
{
perror("connect");
exit (1);
}
/* connection blocks until data is received */
if ( (num_recvd = recv(sockfd, recvline, MAXLINE, 0)) < 0)
{
perror("recv");
exit (1);
}
recvline[num_recvd] = '\0'; /* turn it into a string */
if (fputs(recvline, stdout) == EOF)
{
perror("fputs error");
exit (1);
}
/* flush the output stream to print right away */
fflush(stdout);
/* close the socket */
close(sockfd);
}
return (0);
}
The following is the code for the daytime server:
#include <stdio.h> /* for printf() */
#include <string.h> /* for memset() */
#include <stdlib.h> /* for exit() */
#include <unistd.h> /* for close() */
#include <time.h> /* for time() */
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include "snprintf.h"
#define MYPORT 3490
#define MAX_LINE 128
#define MAX_QUEUE 5
#define MAX_CONNECTS 20
int
main(void)
{
int sockfd; /* socket (file) descriptor */
int acsd; /* accepted connection socket descriptor */
struct sockaddr_in my_addr; /* this server's address */
struct sockaddr_in client_addr; /* a client's address */
socklen_t len=sizeof(client_addr); /* length of the client_addr structure */
int yes=1; /* for socket options */
int in_conn; /* counter for incoming connections */
time_t ticks; /* to calculate current time and date */
char buff[MAX_LINE]; /* to store the server's answer before sending */
/* try to create a socket */
if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
return -1;
}
/* set up the my_addr sockaddr_in structure */
/* Internet family */
my_addr.sin_family = AF_INET; /* in HBO */
/* will listen on this host's IP address */
my_addr.sin_addr.s_addr = htonl(INADDR_ANY); /* long, in NBO */
/* will listen on MYPORT port */
my_addr.sin_port = htons(MYPORT); /* short, in NBO */
/* zero the rest of the struct */
memset(&(my_addr.sin_zero), '\0', 8);
/* make the socket (port MYPORT) re-usable for bind() */
/* otherwise, the kernel may still hang on to the port */
/* and bind() will fail. Without SO_REUSEADDR, just have to wait */
if (setsockopt(sockfd, SOL_SOCKET, SO_REUSEADDR, &yes, sizeof(int))==-1)
{
perror("setsockopt");
exit(1);
}
/* associate the socket with a port (MYPORT) on this machine */
if ( bind (sockfd, (struct sockaddr *) &my_addr,
sizeof(struct sockaddr)) < 0)
{
perror("bind");
exit(1);
}
/* specify how many incoming connection client connections
* will be queued
*/
if (listen(sockfd, MAX_QUEUE) < 0)
{
perror("listen");
exit(1);
}
/* accept MAX_CONNECTS incoming connections to this server */
for (in_conn=0; in_conn<MAX_CONNECTS; in_conn++)
{
/* accept an incoming connection,
* get a socket descriptor: acsd
* get information about the client in client_addr
*/
if ( (acsd = accept(sockfd, (struct sockaddr *) &client_addr, &len)) < 0)
{
perror("accept()");
exit(1);
}
printf("connection from client %s, port %d\n",
inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port));
/* sleep a while */
sleep(20);
/* prepare the reply */
/* obtain current time
* in seconds since the Epoch (00:00:00 UTC, January 1, 1970)
*/
ticks = time(NULL);
/* convert the time to ASCII and put in a string buffer */
snprintf(buff, sizeof(buff), "%.24s\n", ctime(&ticks));
/* send the reply string to the client, null terminated, flags=0 */
send(acsd, (void *) buff, strlen(buff) + 1, 0);
/* close the socket through which the client is accessed */
close(acsd);
}
/* close the server's socket
* attempts to read/write the socket on the client side will
* receive an error.
*/
close(sockfd);
return (0);
}
After a connection from a client has arrived (when the accept() system call returns control) a server has two choices:
Typical pseudocode for concurrent servers is:
sock = socket(...);
bind(sock, ...);
listen(sock, ...);
while(1)
{
new_sock = accept (sock, ...);
switch (fork()) /* Create new process to handle client request */
{
case -1: /* error */
/* perform some error actions */
break;
case 0: /* child */
close (sock); /* close listening socket */
process_request(new_sock,...);/* process the request */
close (new_sock); /* close connected socket */
exit (0);
default: /* parent, return to accept */
close (new_sock); /* close connected socket */
break;
}
}
It is common to catch the SIGCHLD signal in order to perform some clean up actions whenever a child finishes and above all to avoid zombie processes.
Example: modify the previous daytime server to make it concurrent.
In order to be able to connect several clients at a time, we put the serving processes to sleep during a few seconds.
The client code is equal to that of the client studied in the past sections.
The following is the code for the concurrent daytime server:
#include <stdarg.h>
#include <stdio.h>
#include <string.h>
#include <signal.h>
#include <stdlib.h> /* for exit() */
#include <unistd.h> /* for close() */
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <time.h>
#include <sys/types.h>
#include <sys/wait.h>
#include <errno.h> /* for errno */
#include "snprintf.h"
#define MYPORT 3490
#define MAXLINE 128
#define TSLEEP 3
/*
* signal handler
*
* SIGCHLD: child process (servicing a client) stopped or terminated,
* must be handled to avoid zombies
* default action: ignored
*
* SIGINT: interrupt from keyboard
* default action: terminate process
* We silently assume INT signals are sent
* to the parent process only.
*/
void
signal_handler(int signum)
{
int status;
if (signum == SIGINT)
{
fprintf(stderr, "Interrupt from keyboard, server terminating\n");
fflush(stderr);
exit(0);
}
if (signum == SIGCHLD)
{
pid_t child_pid; /* the ending child's PID */
/* while processing, ignore further SIGCHLD interrupts */
signal(SIGCHLD, SIG_IGN);
child_pid = wait(&status);
/*
The wait function suspends execution of the current process
until a child has exited, or until a signal is delivered whose
action is to terminate the current process or to call a signal
handling function. If a child has already exited by the
time of the call (a so-called "zombie" process), the function
returns immediately. Any resources used by the child are freed.
*/
if (WIFEXITED(status))
{
fprintf(stdout, "\nfork()ed server child %d exited normally\n", child_pid);
fflush(stdout);
}
else
{
fprintf(stderr, "Hmm ... child did not exit normally\n");
fflush(stderr);
}
printf("Client serviced, process terminated\n\n");
fflush(stdout);
signal(SIGCHLD, signal_handler); /* capture this signal again */
}
return;
}
/*
* process_request: processes a client's request:
* send the date and time.
*/
void
process_request(int sock, const struct sockaddr_in *cliaddr)
{
time_t ticks; /* Used to calculate current time and date */
char buff[MAXLINE]; /* Used to store server answer */
printf("connection from %s, port %d\n",
inet_ntoa(cliaddr->sin_addr), ntohs(cliaddr->sin_port));
printf("Going to sleep (%d secs)\n", TSLEEP);
sleep(TSLEEP);
/* obtain current time */
ticks = time(NULL);
/* put the time in a string */
snprintf(buff, sizeof(buff), "%.24s\r\n", ctime(&ticks));
/* send the string, '\0' terminated */
send(sock, (void *) buff, strlen(buff) + 1, 0);
printf("Sending reply to client now\n");
}
int
main(int argc, char *argv[])
{
int sockfd; /* server's listening socket */
int csd; /* client-connection sockets */
struct sockaddr_in my_addr; /* this server's address */
struct sockaddr_in cliaddr; /* the client's address (returned by accept) */
socklen_t len = sizeof(cliaddr);
int yes=1;
pid_t pid; /* process ID returned by fork() */
/* catch keyboard interrupt signal to halt the server */
signal(SIGINT, signal_handler);
/* catch child normal termination (avoid zombies) */
signal(SIGCHLD, signal_handler);
if ((sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0)
{
perror("socket");
return -1;
}
my_addr.sin_family = AF_INET; /* host byte order */
my_addr.sin_port = htons(MYPORT); /* short, network byte order */
my_addr.sin_addr.s_addr = htonl(INADDR_ANY);
memset(&(my_addr.sin_zero), '\0', 8); /* zero the rest of the struct */
if (bind (sockfd, (struct sockaddr *) &my_addr, sizeof(struct sockaddr)) < 0)
{
perror("bind");
return -1;
}
/* make the socket (port MYPORT) re-usable for bind() */
/* otherwise, the kernel may still hang on to the port */
/* and bind() will fail. Without SO_REUSEADDR, just have to wait
*/
if (setsockopt(sockfd, SOL_SOCKET, SO_REUSEADDR, &yes, sizeof(int))==-1)
{
perror("setsockopt");
exit(1);
}
if (listen(sockfd, 5) < 0)
{
perror("listen");
exit (1);
}
while (1) /* forever */
{
/* blocks until an incoming connection request */
if ((csd = accept(sockfd, (struct sockaddr *) &cliaddr, &len)) < 0)
{
/* The accept() system call is "slow" and may be interrupted
* by a signal from a terminating child !
* Not all kernels automatically restart interrupted system
* calls. We do it here explicitly.
*/
if (errno == EINTR)
continue;
else
{
perror("accept()");
return -1;
}
}
pid = fork(); /* spawn a new process to handle client requests */
if (pid <0) /* error in creating a child process */
{
perror("fork()");
exit(1);
};
if (pid == 0) /* this is the child */
{
/* Mark the listening socket as closed and return immediately.
* The socket is no longer usable by this process.
* The child does not need to access the listening socket,
* only the parent does. The parent does not close this socket.
*/
close(sockfd);
/* process the request */
process_request(csd, &cliaddr);
/* As the request has been processed, this process is finished.
* Mark the connected socket as closed and return immediately.
* The socket is no longer usable by this process.
*
* Closing csd is not absolutely necessary as exit(0) ends the
* process. The kernel will then close all open file descriptors.
*
*/
close(csd);
/* the child terminates */
exit(0);
};
if (pid > 0) /* this is the parent */
{
/* Mark the connected socket as closed and return immediately.
* The parent process only listens for new connections and
* hence does not need the client-connection socket.
* The latter is handled by the client.
*
* Closing csd by the parent does NOT terminate the
* connection (of the child) with the client.
* A FIN is only sent to the client when the socket reference
* count reaches 0.
*/
close(csd);
}
/* of the above three cases, only (pid >0) parent continues
* the infinite loop.
*/
}
}
To handle multiple sockets, different alternative solutions:
The function prototype for select() and related functions:
#include <sys/types.h>
#include <sys/time.h>
int select(int maxfdpl,
fd_set * readfds, fd_set * writefds, fd_set * exceptfds,
struct timeval * timeout);
FD_ZERO (fd_set * fdset); /* clear all bits in fdset */
FD_SET (int fd, fd_set * fd_set); /* turn the bit for fd on in fdset */
FD_CLR (int fd, fd_set * fd_set); /* turn the bit for fd off in fdset */
FD_ISSET(int fd, fd_set * fd_set); /* test the bit for fd in fdset */
The structure pointed by the timeout argument is defined in <sys/time.h> in the following way:
struct timeval
{
long tv_sec; /* seconds */
long tv_usec; /* microseconds */
};
Call select() to know when
select() can be set to return:
The maxfdpl argument must be set to the value of the largest
file descriptor in the sets plus one.
Initially, all the file descriptors in the sets must be set (with
FD_SET).
When the function returns, if the descripor is set,
then it is ready for I/O.
As usual, the function returns a value of -1 indicating an error.
The following code fragment declares a descriptor set and adds descriptors 1 and 5. Then test these descriptor for reading up to 3 seconds.
.
.
.
struct timeval tv;
fd_set fdvar;
tv.tv_sec = 3;
tv.tv_usec = 0;
FD_ZERO (&fdvar); /* initialize the set - all bits off */
FD_SET (1, &fdvar); /* turn on bit for fd 1 */
FD_SET (5, &fdvar); /* turn on bit for fd 5 */
if ( select(6, &fdvar, NULL, NULL, & tv) < 0 )
{
perror ("select");
return -1;
}
if ( FD_ISSET(1, &fdvar) ) /* we have received something on socket 1*/
{
...
}
if ( FD_ISSET(5, &fdvar) ) /* we have received something on socket 5*/
{
...
}
.
.
.
UDP provides a connectionless service: each datagram sent is independent one.
There is no relationship between sent datagrams even if they come from the
same application.
Datagrams are not numbered which implies they
UDP does not break application data to fit in different datagrams, each request from the application layer must be small enough to fit into one user datagram.
UDP is also unreliable, there is no flow control nor windowing mechanism. There is no error control except for the checksum (the sender does not know if a message has been lost or duplicated).
UDP is used for processes that require simple request/reponse communication, with little concern for flow and error control. It is also suitable for applications with internal flow and error control mechanisms such as TFTP, and for broadcasting and multicasting purposes. UDP is used in management processes such as SNMP and in some routing updating protocols such as RIP.
UDP packets are called user datagrams, and have a fixed size of eight bytes. The fields it contains are:
For a client-server using a connectionless protocol, the system calls are different from the connection oriented case. The next diagram shows a typical sequence of systems calls for both the client and the server.
Server Client
socket()
|
V
bind()
| socket()
V |
recvfrom() V
| bind()
Blocks until data |
received from a client |
| V
| <---- data (request) ----------- sendto()
| |
V |
Process request |
| |
V V
sendto() ------ data (reply) ---------> recvfrom()
The next section explains the recvfrom() and sendto() system calls, the other system calls have been studied in previous sections.
Since datagram sockets are not connected to a remote host, we need the destination address in both calls. Their prototypes are:
int sendto(int sockfd, const void *msg, int len, unsigned int flags,
const struct sockaddr *to, int tolen);
int recvfrom(int sockfd, void *buf, int len, unsigned int flags,
struct sockaddr *from, int *fromlen);
These calls are basically the same as the calls to send() and recv() with the addition of two other pieces of information|
Datagrams socket can also be connected (by calling connect()), and then send() and recv() can be used for all the communications. The socket itself is still a datagram socket and the packets still use UDP, but the socket interface will automatically add the destination and source information.
An example of an UDP echo client and server is presented. The client code is as follows:
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <string.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <sys/types.h>
#define MAXLINE 256
#define PORT 7000
int
main(int argc, char *argv[])
{
int fsd; /* socket descriptor */
int numsent; /* number of bytes sent */
int numrec; /* number of bytes received from server */
struct sockaddr_in servaddr; /* To be filled with server address */
struct sockaddr_in replyaddr;
socklen_t len= sizeof(servaddr); /* store address size */
char sendline[MAXLINE]; /* string to be sent */
char recvline[MAXLINE + 1]; /* received string */
/* get a datagram (UDP) socket */
if ((fsd = socket(AF_INET, SOCK_DGRAM, 0)) < 0)
{
perror("socket");
exit(1);
}
/* fill address completely with 0's */
memset(&servaddr, '\0', sizeof(servaddr));
servaddr.sin_family = AF_INET; /* Internet family */
servaddr.sin_addr.s_addr = htonl(INADDR_ANY); /* this machine's IP address */
servaddr.sin_port = htons(PORT); /* echo service port */
/* standard: port 7 */
while (1) /* forever */
{
/* prompt the user */
printf("==>");
fflush(stdout);
/* read user input */
fgets(sendline, MAXLINE, stdin);
/* stop when "exit" is entered */
if (strcmp(sendline, "exit\n") == 0)
break;
/* send entered text to the server (address in servaddr)
* note how strlen(sendline) does not include the '\0'
* at the end of the string
*/
numsent = sendto(fsd, sendline, strlen(sendline), 0,
(struct sockaddr *) &servaddr, sizeof(servaddr));
if (numsent == -1)
{
/* note how only sender-side errors are detected
* UDP is connectionless, don't if care datagram arrives
*/
perror("sendto");
exit(1);
}
/* if we asked the server to die, don't wait for reply */
if (strcmp(sendline, "die!\n") != 0)
{
/* Receive the answer from the server */
if ((numrec = recvfrom(fsd, recvline, MAXLINE, 0, &replyaddr, &len)) < 0)
{
perror("recvfrom");
exit(1);
}
/* the '\0' at the end of sendline was not sent
* need to add one now to print as string
*/
recvline[numrec] = '\0';
printf(" from server: %s\n", recvline); /* show on screen */
}
}
/* close the socket */
close(fsd);
/* normal end */
printf("echo client normal end\n");
return 0;
}
The server code is as follows:
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <string.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <sys/types.h>
#define MAXLINE 256
#define PORT 7000
int
main(int argc, char *argv[])
{
int fsd; /* socket descriptor */
int numrec; /* number of bytes received */
struct sockaddr_in servaddr; /* To be filled with server address */
struct sockaddr_in cliaddr; /* To be filled with client address */
socklen_t len=sizeof(cliaddr); /* size of client address structure */
char recvline[MAXLINE + 1]; /* area to receive in */
/* get a datagram (UDP) socket descriptor */
if ((fsd = socket(AF_INET, SOCK_DGRAM, 0)) < 0)
{
perror("socket");
exit(1);
}
memset(&servaddr, '\0', sizeof(servaddr)); /* fill address with 0's */
servaddr.sin_family = AF_INET; /* Internet family */
servaddr.sin_addr.s_addr = htonl(INADDR_ANY); /* My IP address */
servaddr.sin_port = htons(PORT); /* port on which
* this service is provided
* wellknown: 7 */
/* Assign an address to the socket */
bind(fsd, (struct sockaddr *) &servaddr, sizeof(servaddr));
/* forever */
while (1)
{
/* block until an incoming client request */
if ( (numrec = recvfrom(fsd, recvline, MAXLINE, 0,
(struct sockaddr *) &cliaddr, &len)) < 0)
{
perror("recvfrom");
exit(1);
}
fprintf(stdout,
"connection from %s, port %d. Received %d bytes.\n",
inet_ntoa(cliaddr.sin_addr), /* IP address, as a string */
ntohs(cliaddr.sin_port), /* port number, in HBO */
numrec); /* number of bytes received */
fflush(stdout);
recvline[numrec]='\0'; /* make it a string */
if (strcmp(recvline, "die!\n") == 0)
{
fprintf(stdout, "a client asks me to terminate, complying\n");
fflush(stdout);
break;
}
/* echo the received to the client */
if (sendto(fsd, recvline, numrec, 0, &cliaddr, len) < 0)
{
perror("sendto");
exit(1);
}
}
fprintf(stdout, "server normal end\n");
fflush(stdout);
return 0;
}
