GPSS (General Purpose Simulation System) has been developed over many years, principally by IBM.
The system to be simulated in GPSS is described as a block diagram in which the blocks represent the activities, and the lines joining the blocks indicate the sequence in which the activities can be executed. Where there's a choice of activities, more than one line leaves a block and the condition for the choice is stated at the block.
GPSS focuses in the life-cycle of a transaction.
For detail, go to here http://www.cs.mcgill.ca/~hv/classes/MS/GPSSH/
Simulator should support the following blocks
GENERATE(Mean, Modifier, count) |
Create Transactions whose interval is Mean+-Modifier until #transactions = count |
---|---|
SEIZE(Facility No) |
Allows the transaction to engage a facility if it's available |
RELEASE(Facility No) |
Allows the transaction to disengage the facility |
ADVANCE(Mean, Modifier) |
The transaction remain in the advance block for interval = Mean+-Modifier |
TRANSFER(Select Factor, Block A, Block B) |
The probability of going to block A is 1-S, and to block B is s. BOTH is not supported. |
TERMINATE |
Remove Transaction |
START |
Set termination number |
Simulation result should include
Total simulation time |
The time from beginning to end of simulation |
---|---|
Average simulation time |
Total simulation time/#transactions |
Average utility of facility |
Average utility of an facility |
Average occupied time of facility |
Average occupied time of facility |
The entry number of block label |
Shows how many transactions go into the block label |
Tracing result |
Display transactions go through all blocks to ease the burden of debugging if VERBOSE flag is turned on |

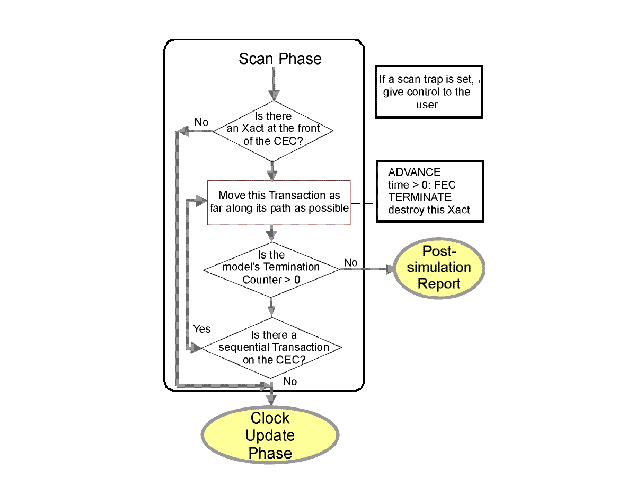

GPSS simulator kernal
For
detail, please see
http://isgwww.cs.uni-magdeburg.de/~pelo/s1e/sa5/sa52.shtml
